- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58020

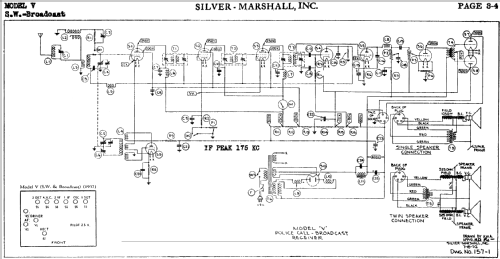

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 119 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: V - Silver - Marshall; Chicago, IL
- Shape
- Console with any shape - in general
- Notes
- Tuning meter; push-pull af output stage; one speaker or two speakers (see also "triple speaker & supply unit for model V").
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Other Models
-
Here you find 225 models, 116 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Silver - Marshall; Chicago, IL
