World Receiver – Multi Band Radio SWE 200 A2
SilverCrest / Silver Crest (Lidl-Marke)
- Country
- Germany
- Manufacturer / Brand
- SilverCrest / Silver Crest (Lidl-Marke)
- Year
- 2017 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338270
Radio bought used, it is like new
Side details

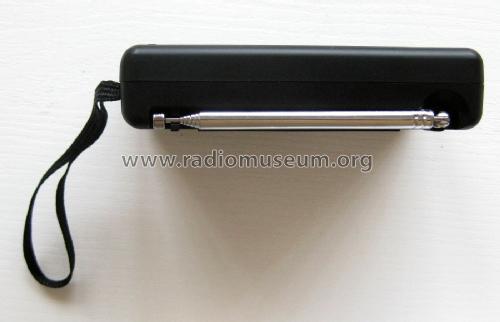

Top, with telescopic antenna (for SW and FM)
Back with details (labels) and serial number
Battery compartment detail
Back detail
Original bag
Manual, front
Manual, back
Box. front
Box, side with serial number
Box, back with receiver specifications
Box, side with Targa address and Lidl logo
Box, side with barcode
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 2 x 1.5 / DC 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: World Receiver – Multi Band Radio SWE 200 A2 - SilverCrest / Silver Crest
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 130 x 80 x 30 mm / 5.1 x 3.1 x 1.2 inch
- Notes
-
The Silvercrest World Receiver SWE 200 A2 has MW, SW (4.75 – 21.85 MHz) and FM reception. It covers these SW bands: 60, 49, 41, 31, 25, 22, 19, 16 and 13 m. 20 station memories, digital alarm clock. 3.5 mm headphones jack, ext. DC connector.
Ext. DC Current: max. 100 mA
Imported by Targa GmbH, Coesterweg 45, D-59494 Soest, for Lidl Stiftung & Co. KG
- Author
- Model page created by Davide Tambuchi. See "Data change" for further contributors.
