- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149840
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

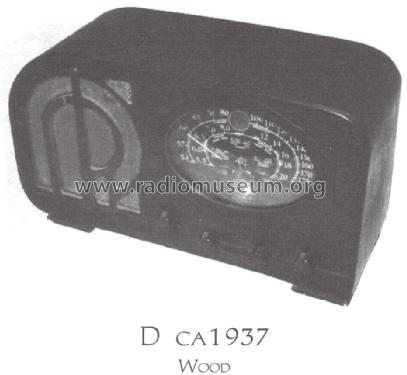

- Model: D [1935] - Simplex Radio Co.;
- Shape
- Tablemodel, low profile (big size).
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Machine Age to Jet Age II (page 274.)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
