D Deluxe Table model
Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244423
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- K38B2
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6.5 inch = 16.5 cm
- Material

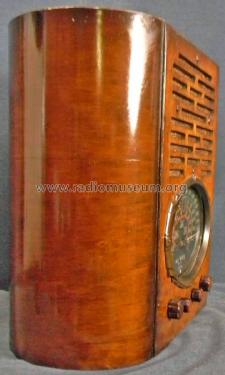

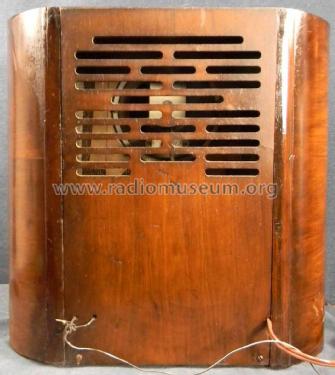

- Wooden case
- from Radiomuseum.org
- Model: D Deluxe [Table model] - Simplex Radio Co.;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 13.25 x 16 x 6.5 inch / 337 x 406 x 165 mm
- Notes
-
Tunes 15-55 and 170-555 meters, AVC, tone control.
- Net weight (2.2 lb = 1 kg)
- 10.75 lb (10 lb 12 oz) / 4.881 kg
- Price in first year of sale
- 29.45 $
- Mentioned in
- Cathedral & Tombstone Radios (page 249.)
- Literature/Schematics (3)
- -- Original prospect or advert (The Simplex Folder ca. for 1936.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
