• Country
• United States of America (USA)

• Manufacturer / Brand
• Simplex Radio Co.; Philadelphia, PA and Sandusky, OH

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254009

• Number of Tubes
• 5

• Valves / Tubes
• 38 6Q6G 6S7G 6D8G 6N5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 32 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org

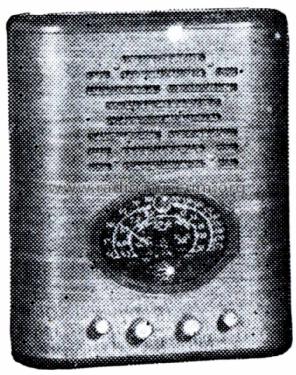

• Model: DF Deluxe [Table model] - Simplex Radio Co.;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Price in first year of sale
• 38.95 $

• Literature/Schematics (3)
• -- Original prospect or advert (The Simplex Folder ca. for 1936.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 178 models, 91 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
