- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149842
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G [1935] - Simplex Radio Co.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-

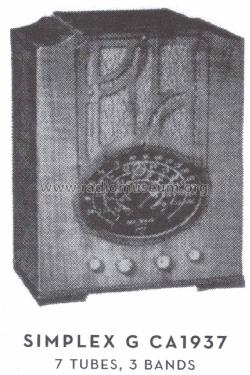

Since Stein shows a number of 7 tubes, we are not sure if the picture belongs to this model.
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Cathedral & Tombstone Radios (page 249.)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
