• Country
• United States of America (USA)

• Manufacturer / Brand
• Simplex Radio Co.; Philadelphia, PA and Sandusky, OH

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256118

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 44 77 43 25Z5

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC: 25-60 cycles, 110V or DC: 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.9 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Goldentone 41 Ch= V - Simplex Radio Co.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.75 x 6 x 3.75 inch / 222 x 152 x 95 mm

• Notes

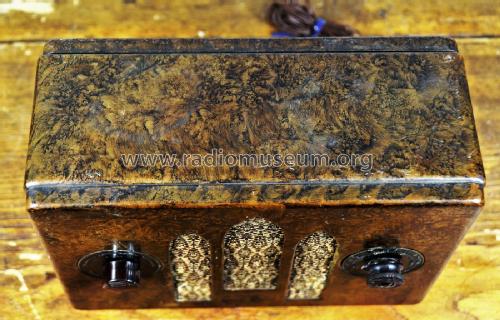

• The Goldentone 41 is an AC/DC operated 4 tube BC band receiver.  The BC band frequency tuning range is 540-1710kHz. This model was furnished with a 25' antenna wire. An adapter was available to allow operation from 220V. Cabinet is steel with burl walnut bakelite finish.

  This set has a 3 wire resistive line cord, commonly called a "Curtain Burner".  The resistive wire had a 145 Ohm resistance.  Care should be used if operating this radio with the original cord, as the cord generates significant heat.

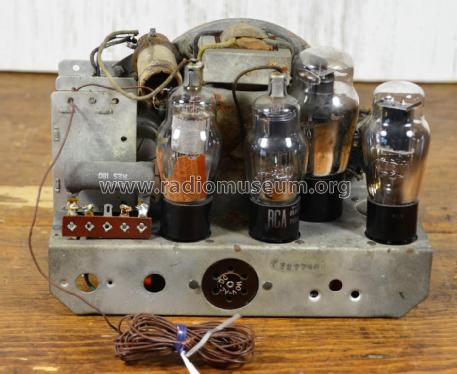

  This model was manufacturered for Goldentone by the Simplex Radio Corporation. The Simplex model V is the chassis used for this radio.

• Net weight (2.2 lb = 1 kg)
• 7 lb (7 lb 0 oz) / 3.178 kg

• Price in first year of sale
• 11.95 $ !

• Literature/Schematics (1)
• Rider's Perpetual, Volume 4 = ca. 1934 and before (Riders (Simplex Radio Co.) page 4-6)

• Literature/Schematics (2)
• - - Manufacturers Literature (Goldentone 1935 Radio Bargin Catalog, pages 4, 5)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
