- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240918
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R Deluxe - Simplex Radio Co.;
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 9.25 x 12 x 5.5 inch / 235 x 305 x 140 mm
- Net weight (2.2 lb = 1 kg)
- 9.75 lb (9 lb 12 oz) / 4.427 kg
- Mentioned in
- Machine Age to Jet Age II (page 275.)
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 250.)
- Literature/Schematics (3)

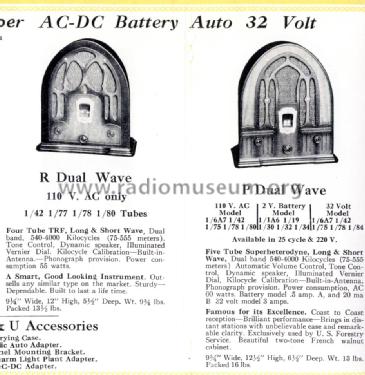

- -- Original prospect or advert (The Simplex Folder ca. for 1933.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
