RJ Table model
Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254010
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: RJ [Table model] - Simplex Radio Co.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 12.5 x 7.75 x 5 inch / 318 x 197 x 127 mm
- Net weight (2.2 lb = 1 kg)
- 5 lb 0 oz (5 lb) / 2.270 kg
- Price in first year of sale
- 19.95 $
- Literature/Schematics (3)

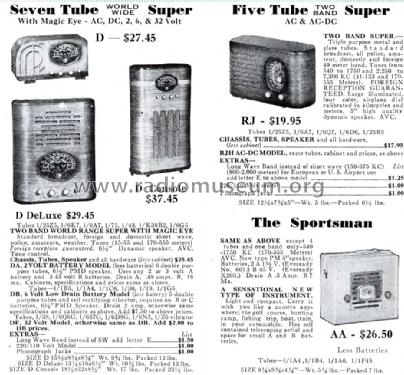

- -- Original prospect or advert (The Simplex Folder ca. for 1936.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
