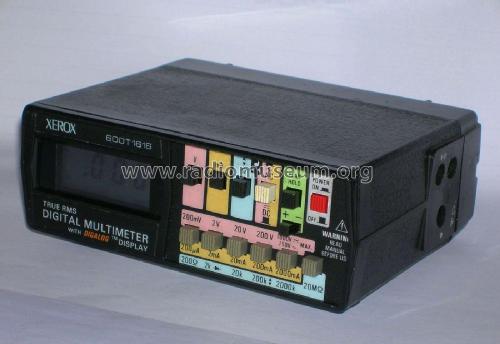

Xerox - Digital Multimeter 600T1616
Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
- Country
- United States of America (USA)
- Manufacturer / Brand
- Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
- Year
- 1977 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 343144
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Xerox - Digital Multimeter 600T1616 - Simpson Electric Co.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 140 x 55 x 115 mm / 5.5 x 2.2 x 4.5 inch
- Notes
-
Measuring ranges: V DC, V AC, mA DC, mA AC, Ω / kΩ in the ranges of 2, 20, 200 2000. Special ranges 200 mV / µA / Ω and 20 MΩ. Max. 1000 VDC / 750VAC.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
