• Country
• Canada

• Manufacturer / Brand
• Simpson Co. Ltd., The Robert (Simpson's); (where?)

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174995

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

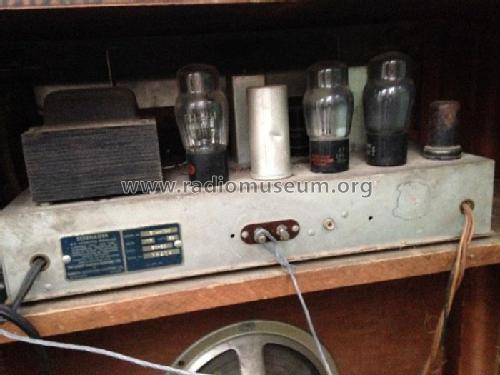

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6J5 6F6G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

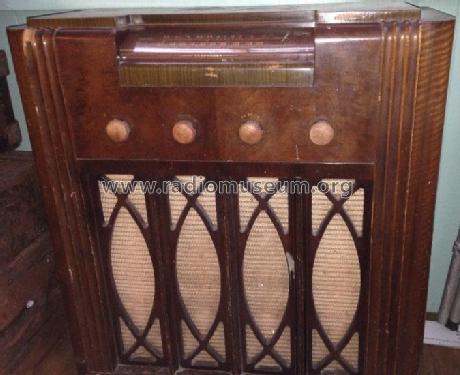

• Model: Serenader 510-2 Ch= S1-4726 - Simpson Co. Ltd., The Robert

• Shape
• Console with any shape - in general

• Notes
• Serenader 510-2, Ch= S1-4726;
  AM: 535 - 1650 kHz,
  SW: 5.7 - 17.5 MHz,
  85 W power consumption.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 20 page 17, 18 and 20)
