Serenader 710 SC72-437
Simpson Co. Ltd., The Robert (Simpson's); (where?)
- Country
- Canada
- Manufacturer / Brand
- Simpson Co. Ltd., The Robert (Simpson's); (where?)
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174996

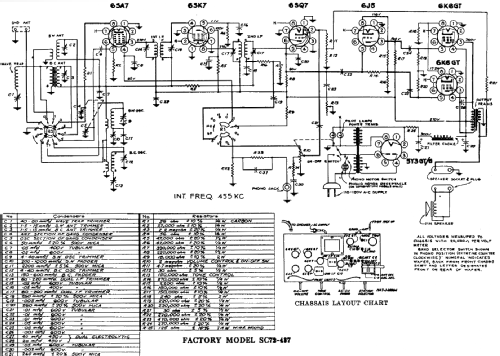

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Serenader 710 SC72-437 - Simpson Co. Ltd., The Robert
- Shape
- Console with any shape - in general
- Notes
-
Serenader 710, SC72-437;
AM: 535 to 1600 kHz, SW: 6 to 16 MHz
85 W power consumption. For 25 or 60 Hz depending on nameplate rating.
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 21 page 17 and 18)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
