• Country
• Canada

• Manufacturer / Brand
• Simpsons Sears Ltd.; Toronto, Ontario

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324320

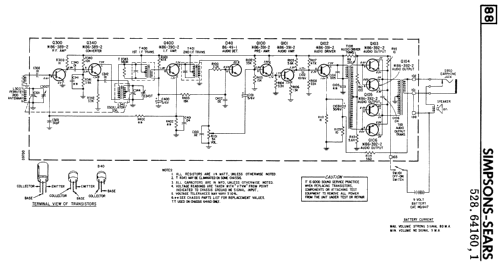

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superhet with RF-stage; 4 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12100 Ch= 528.64160 - Simpsons Sears Ltd.; Toronto,

• Notes

• The Simpsons-Sears model 12100 is a 10-transistor AM radio. Has earphone jack.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1969 Supplement 103)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
