AM/FM Tuner Chassis Ch= 528.53570
Simpsons Sears Ltd.; Toronto, Ontario
- Country
- Canada
- Manufacturer / Brand
- Simpsons Sears Ltd.; Toronto, Ontario
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 304522

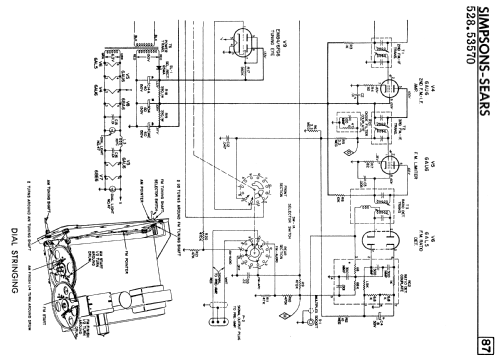

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Tuner Chassis Ch= 528.53570 - Simpsons Sears Ltd.; Toronto,
- Shape
- Chassis only or for «building in»
- Notes
-
The Simpsons-Sears chassis 528.53570 is an AM/FM tuner chassis used in Simpsons-Sears model 73, 74 and 75 consoles that have a seperate preamp/power amp chassis.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1960-61 Supplement 52)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
