Ch= C817.62860
Simpsons Sears Ltd.; Toronto, Ontario
- Country
- Canada
- Manufacturer / Brand
- Simpsons Sears Ltd.; Toronto, Ontario
- Year
- 1953 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 308839

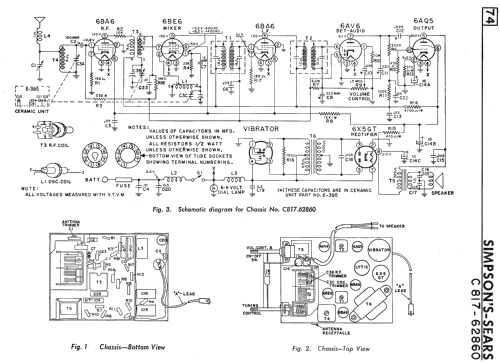

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Ch= C817.62860 - Simpsons Sears Ltd.; Toronto,
- Shape
- Chassis only or for «building in»
- Notes
-
The Simpsons chassis C817.62860 is used in a 6-tube, 6 volt car radio. Has vibrator type B+.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 32)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
