Silvertone 4166 Ch= C817.41650

Simpsons Sears Ltd.; Toronto, Ontario

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 298566

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 4166 Ch= C817.41650 - Simpsons Sears Ltd.; Toronto,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 13.875 x 6.75 x 6.5 inch / 352 x 171 x 165 mm
  • Notes

  • The Silvertone model 4166 is an AC/DC operated 6 tube BC band receiver.

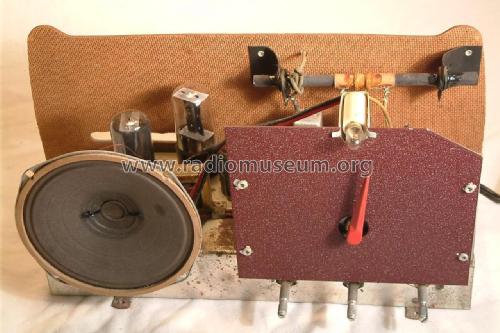

    Built-in ferrite rod antenna.

    Cat. No.4165 Brown
    Cat No. 4166 Ivory

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
