• Country
• United States of America (USA)

• Manufacturer / Brand
• Singer Company, The; La Vergne, TN

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212520

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC127 AC128 AC127 AC128

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Wave bands

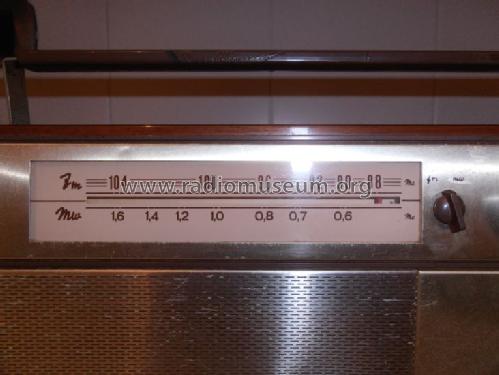

• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 6x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AP652 - Singer Company, The; La Vergne

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 200 x 10 mm / 12.6 x 7.9 x 0.4 inch

• Net weight (2.2 lb = 1 kg)
• 0.450 kg / 0 lb 15.9 oz (0.991 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
