- Country
- Italy
- Manufacturer / Brand
- Sinudyne, Societá Elettronica Italiana SEI (S.E.I.); Ozzano Emilia (Bologna)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254060

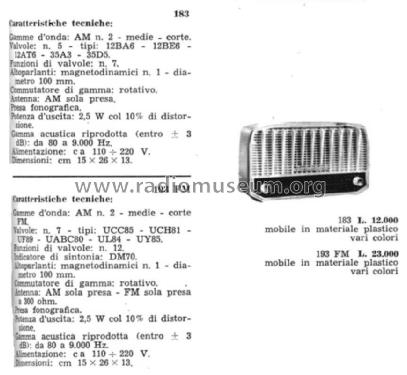

catalogo anie 1959-60
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 2.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 193FM - Sinudyne, Societá Elettronica
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 150 x 260 x 130 mm / 5.9 x 10.2 x 5.1 inch
- Notes
-
Ricevitore con 4 gamme d'onda, onde medie divise in 2 bande, onde corte, MF.
- Price in first year of sale
- 23,000.00 ITL
- Mentioned in
- Catalogo ANIE (edizione 1959-60 pagina 79)
- Author
- Model page created by Guglielmo Rebuffo. See "Data change" for further contributors.
