• Country
• Italy

• Manufacturer / Brand
• Sinudyne, Societá Elettronica Italiana SEI (S.E.I.); Ozzano Emilia (Bologna)

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176935

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC169 OC169 OC75 OC71 OC74 OC74 OA79

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

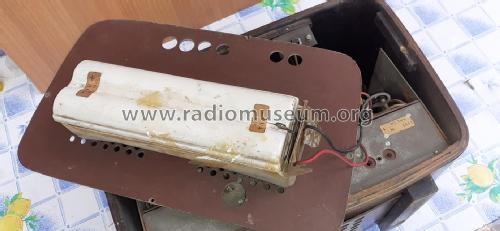

• Dry Batteries / 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 392 Trans. - Sinudyne, Societá Elettronica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 220 x 170 mm / 13.4 x 8.7 x 6.7 inch

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi a Transistori R. Rosati Edizioni C. E. L. I.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
