• Country
• Italy

• Manufacturer / Brand
• Sinudyne, Societá Elettronica Italiana SEI (S.E.I.); Ozzano Emilia (Bologna)

• Year
• 1970 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 220543

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-120W

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 125; 160; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

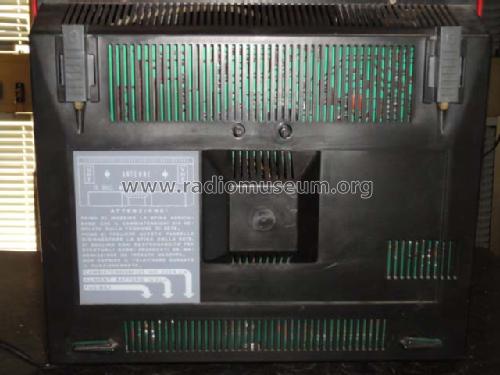

• Model: Kronos T400 - Sinudyne, Societá Elettronica

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 345 x 325 x 230 mm / 13.6 x 12.8 x 9.1 inch

• Notes
• Sono presenti anche due integrati TAA611B TAA661B. CRT: A31-120W-L Sylvania

• Circuit diagram reference
• Schemario TV , Il Rostro

• Author
• Model page created by Raffaele Pedrini. See "Data change" for further contributors.
