R1 (R.I.) slant panel
SITI (Società Industrie Telefoniche Italiane) - Ing. Doglio
- Country
- Italy
- Manufacturer / Brand
- SITI (Società Industrie Telefoniche Italiane) - Ing. Doglio
- Year
- 1923/1924
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95597
-
- Brand: Siti

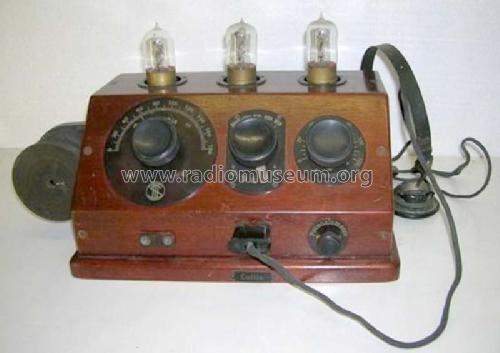

Image courtsy emiliofarano.it
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: R1 [slant panel] - SITI Società Industrie
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 290 x 180 x 150 mm / 11.4 x 7.1 x 5.9 inch
- Notes
-
There are two versions, one as box and the other with slant panel.
Height measured without tubes.See also the similar model Horny Miravox III
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert (Il Radio Giornale, anno 1 n. 1, 15 dicembre 1923)
- Literature/Schematics (1)
- Guida Pratica Antique Radio II (2000)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
