Pulsomat 52

• Country
• Spain

• Manufacturer / Brand
• Skreibson; Barcelona

• Year
• 1972

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 290890

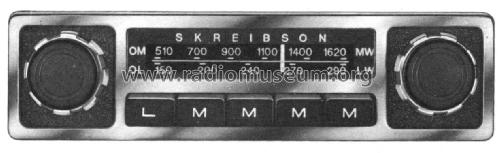

• Picture

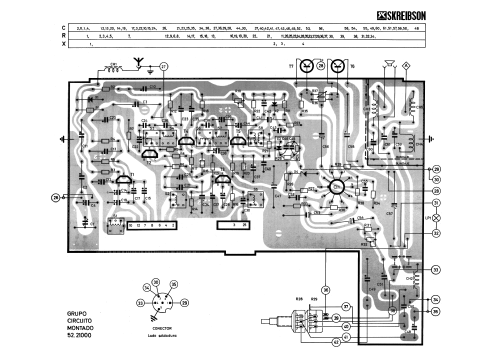

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF194 BF194 BF194 BF194 BF194 AD161 AD162 TAA435 SFD186 1N542 1N4160

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Pulsomat 52 - Skreibson; Barcelona

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 49 x 152 mm / 6.9 x 1.9 x 6 inch

• Notes

•  Polaridad reversible para uso con positivo o negativo a masa.

• Net weight (2.2 lb = 1 kg)
• 1.250 kg / 2 lb 12.1 oz (2.753 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
