Sidermat 16
Skreibson; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Skreibson; Barcelona
- Year
- 1972
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 290784

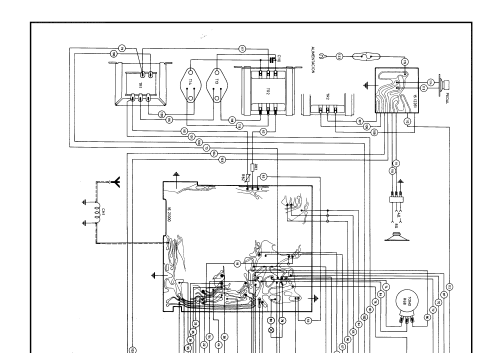

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- AF126 AF126 AF126 AF126 AF126 2N4291 BC148 AC188 AC125 AC188 AD142 AD142 AA119 SFD186 BZX29
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8.5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sidermat 16 - Skreibson; Barcelona
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 186 x 65 x 182 mm / 7.3 x 2.6 x 7.2 inch
- Net weight (2.2 lb = 1 kg)
- 2.250 kg / 4 lb 15.3 oz (4.956 lb)

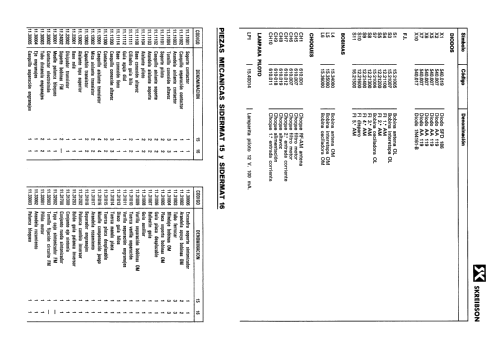

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
