SK-9500
Skreibson; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Skreibson; Barcelona
- Year
- 1980 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 340899
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Semiconductors
- BF194 SF294 BF194 BC148 BC148 TBA480 TBA810 TBA810 TAA310 TAA310 580X0030 TCA610B AA119 SFD186 SD60 1N914 1N4151
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: SK-9500 - Skreibson; Barcelona
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 49 x 140 mm / 7.1 x 1.9 x 5.5 inch
- Notes
-
Skreibson, S.A., SK-9500
Salida en estéreo para el cassette.
- Net weight (2.2 lb = 1 kg)
- 1.780 kg / 3 lb 14.7 oz (3.921 lb)
- Literature/Schematics (1)

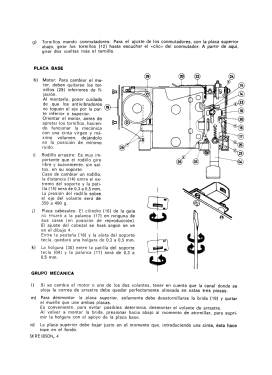

- -- Original-techn. papers. (Esquemario Magnetófonos y Cassettes REDE, Tomo VI, 1978)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
