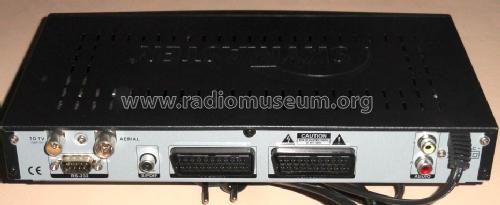

DVB-T Receiver DT100

Skymaster SM Electronic GmbH & Co KG, Stapelfeld/Braak

Data
Forum
Pictures
Collections

  • Year
  • 2006 ??
  • Category
  • Digital terrestrial, Internet and SAT receiver (also analogue)
  • Radiomuseum.org ID
  • 246742

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Alternating Current supply (AC) / 90-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: DVB-T Receiver DT100 - Skymaster SM Electronic GmbH &
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 280 x 40.5 x 193 mm / 11 x 1.6 x 7.6 inch
  • Notes

  • Demodulator:
    COFDM: 2K/8K; Guard 1/2,1/4,1/8,1/16,1/32; FEC 1/2,2/3,3/4,4/5,5/6,7/8; QPSK; 16 QAM; 64 QAM.
    HF Eingang: IEC Buchse;
    Frequenzbereich 147 bis 429,9 MHz 430 bis 858 MHz.
    Bandbreite 8 / 7 MHz; Exceeds DTG targets; Tuner Durchschleifbetrieb; 1000 Speicherplätze.
    Video Decoder:
    MPEG-2; Datenübertragungsrate bis zu 15 Mbits/s; Bildschirmformate 4:3  16:9.
    Audio Decoder:
    MPEG-2 Layer I & II Mono / Stereo / Dual channel: Datenrate bis zu384 Kbits/s.
    AV Ausgänge:
    FBAS (Composite); RGB; Stereo; Digital Audio; koaxial S/PDIF.
    CPU & Speicher:
    32 Bit Risc; 2 M Flash; 8 M SDRAM.







  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Mentioned in
  • -- Original prospect or advert
