SAT-Finder 37351

Skymaster SM Electronic GmbH & Co KG, Stapelfeld/Braak

Data
Forum
Pictures
Collections

  • Year
  • 2004 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 357069

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Crystal or Solid State Detector with Amplifer
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 13-18 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: SAT-Finder 37351 - Skymaster SM Electronic GmbH &
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 44 x 48 x 35 mm / 1.7 x 1.9 x 1.4 inch
  • Notes

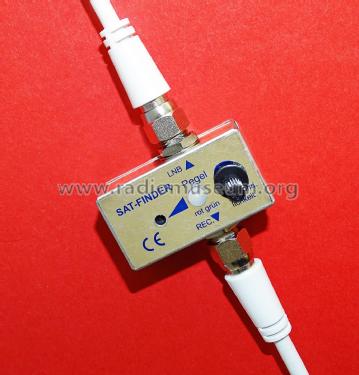

  • The Skymaster 37351 SAT-Finder is a simple and inexpensive instrument for optimising the alignment of a domestic satellite antenna that can be inserted in the coax cable near to the LNB. A gain control is provided, and changes in the received signal strength are indicated by the intensity and pitch of the sound output and the colour of a red-yellow-green LED.

    The SAT-Finder is powered by the 13/18 V LNB voltage supplied by the satellite receiver. It has female F-Type coax sockets for connection to the receiver and the LNB. In different versions of the device, these sockets can be on the short or long sides of the housing.

  • Net weight (2.2 lb = 1 kg)
  • 0.035 kg / 0 lb 1.2 oz (0.077 lb)
  • Mentioned in

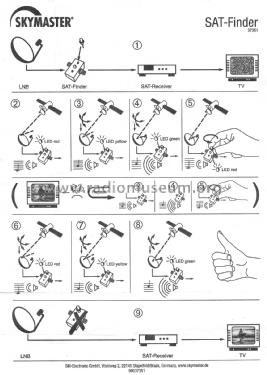

  • - - Manufacturers Literature (Instruction sheet)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
