• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Skyscraper (Brand) Bond & Bond Ltd.;Auckland

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345187

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 or 6AT6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

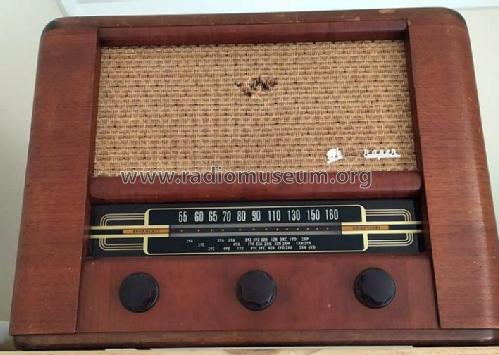

• Model: Skyscraper 6150 - Skyscraper Brand Bond & Bond

• Shape
• Tablemodel, with any shape - general.

• Notes

• 6-Valve superhet with RF stage broadcast (MW) mantel receiver.

  Rola 6-9H elliptical speaker.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
