• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Skyscraper (Brand) Bond & Bond Ltd.;Auckland

• Year
• 1951–1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351153

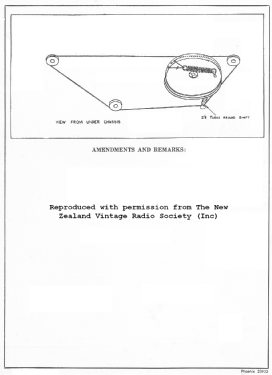

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Skyscraper RBK - Skyscraper Brand Bond & Bond

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 280 x 145 mm / 15 x 11 x 5.7 inch

• Notes

• 5-Valve superhet broadcast (MW) mantel model receiver with Rola 6-9H elliptical speaker.

  Manufactured 1951-1956 with valve lineups as follows:

  • Early models 6BE6 6AR7 6AV6 6AQ5 6X4
  • Later models 6BE6 EF41 6AV6 EL41 6X4

  Manufactured by Radio (1936) Ltd.

  See also Courier RBK, Rolls RBK, & Ultimate RBK.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
