• Country
• Hong Kong

• Manufacturer / Brand
• Swing Interlectronic Ltd.; Hong Kong

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170123

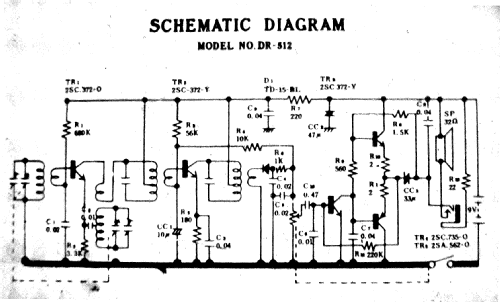

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

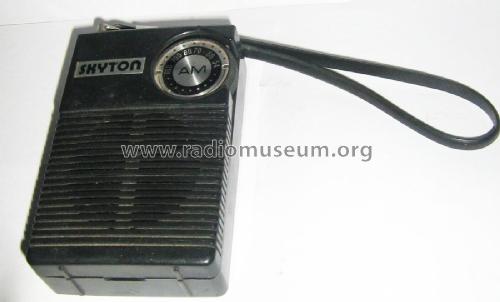

• Model: Skyton DR-812 - Swing Interlectronic Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 106 x 66 x 30 mm / 4.2 x 2.6 x 1.2 inch

• Notes

• Unit with carrying strap. Under different brand names as standard export model

  See also: Skyton BR-512.

  Made in Korea

• Net weight (2.2 lb = 1 kg)
• 0.170 kg / 0 lb 6 oz (0.374 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
