• Country
• Hong Kong

• Manufacturer / Brand
• Skyton (brand of Swing Interlectronic); Hong Kong

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216021

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220-240 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

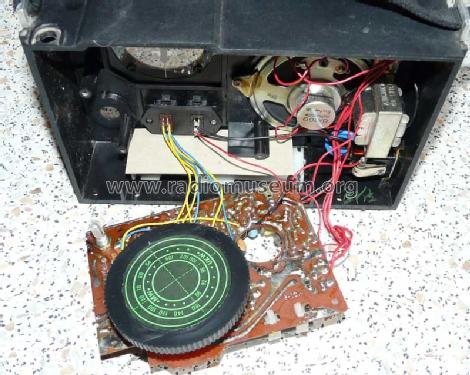

• Model: Solid State MW/UKW Radio TR-144 - Skyton brand of Swing

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 130 x 60 mm / 8.3 x 5.1 x 2.4 inch

• Notes
• Deutsch beschriftet.

• Net weight (2.2 lb = 1 kg)
• 0.680 kg / 1 lb 8 oz (1.498 lb)

• Author
• Model page created by Michael Schott. See "Data change" for further contributors.
