Sleeper Scout Type 60

Sleeper Radio Corp.; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1926/1927
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227873

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sleeper Scout Type 60 - Sleeper Radio Corp.; New York
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 35 x 11 x 11 inch / 889 x 279 x 279 mm
  • Notes

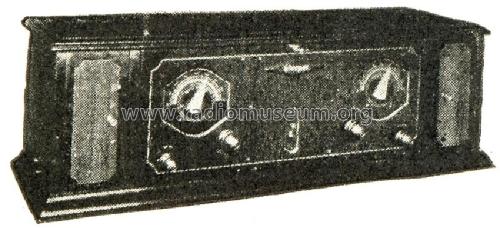

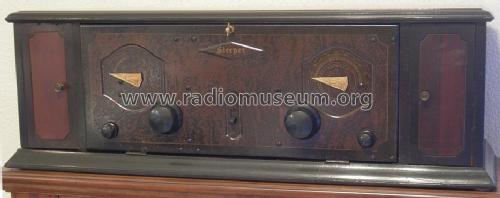

  • Sleeper Scout Type 60 Five-Tube Tuned Radio Frequency Receiving set with wavelength scales, recessed in front panel, calibrated from 200 to 600 meters. Compartments on each side give ample space for 90 volts of "B" battery while a compartment in the rear holds up to 45 volts of "C" battery as required.

  • Price in first year of sale
  • 160.00 USD
  • Literature/Schematics (1)
  • December 1926 Radio Dealer magazine
  • Literature/Schematics (3)
  • Radio Retailing June 1927 page 36.
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
