Fono Transistor 61

SNT (Società Negro e Torretta); Milano

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 179781

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.95 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Fono Transistor 61 - SNT Società Negro e Torretta;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

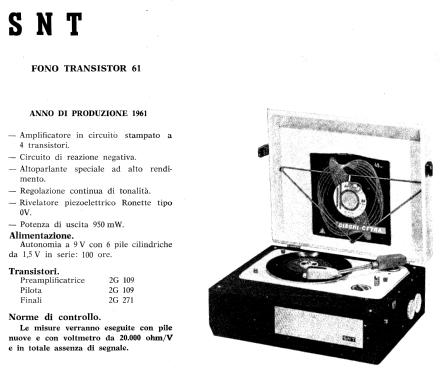

  • Amplificatore in circuito stampato a 4 transistori.
    Regolazione continua di tonalità.
    Rivelatore piezoelettrico Ronette tipo 0V.
  • Literature/Schematics (1)

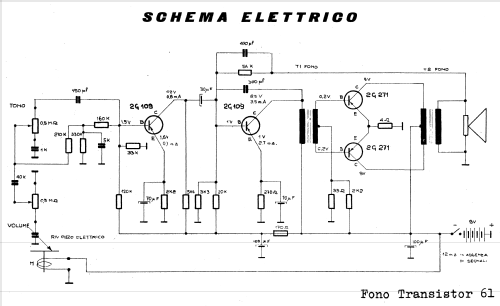

  • -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
