Digital Multimeter ME-521DX
Soar Corporation; Hanishinagun
- Country
- Japan
- Manufacturer / Brand
- Soar Corporation; Hanishinagun
- Year
- 1978
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 328462

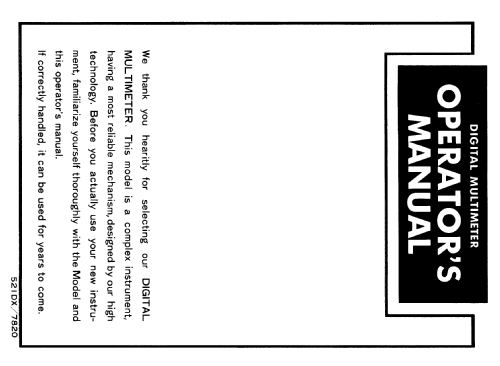

Picture from user manual

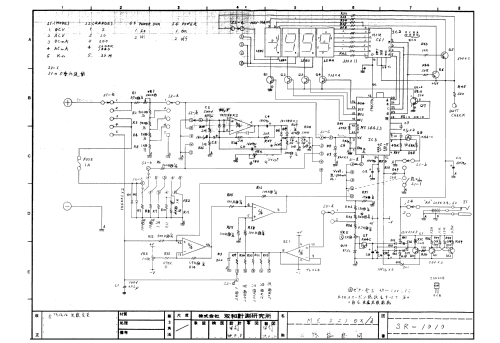

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- 2SC536 2SC536 2SC536 2SC536 2SA608 2SA608 2SC536 2SK44 2SK44 2SC536 2SC536 2SC536 TL064 MSM561 MC1433 MAN74 MAN74 MAN74 MAN74 1N4001 1S1588
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter ME-521DX - Soar Corporation; Hanishinagun
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 95 x 155 x 45 mm / 3.7 x 6.1 x 1.8 inch
- Notes
-
Soar Corporation, Digital Multimeter ME-521DX
Led 3-½ digit (Max. reading 1999 or -1999)
Measures: V (AC/DC), mA (AC/DC), Ohms.
Ads say LCD display but in reality it has LED display
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Mentioned in
- Electronics Today International, December 1978
- Literature/Schematics (1)

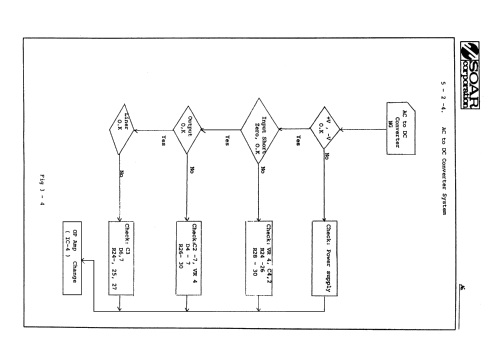

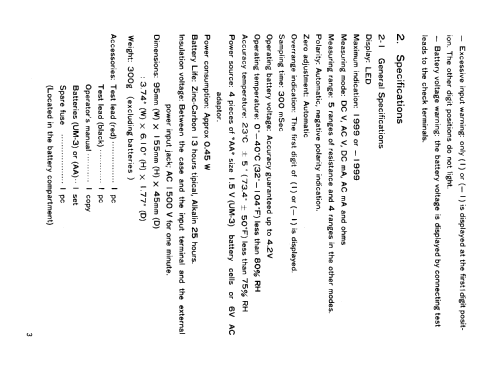

- -- Original-techn. papers. (User and service manuals)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
