• Country
• Japan

• Manufacturer / Brand
• Soar Corporation; Hanishinagun

• Year
• 1977 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 322604

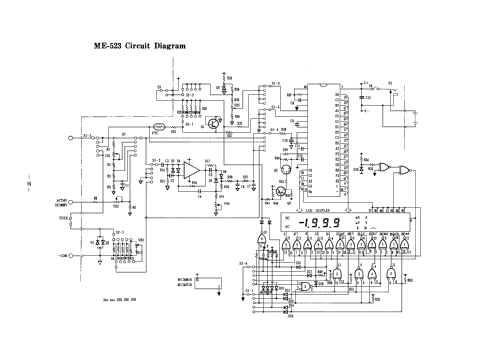

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• 2SA608 2SC1959 2SK44 CD4071 CD4077 CD4077 CD4077 TL061 ICL7106 ICL8069 1N4001 1S1588 unknown_Display

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / PP3: 1 x 9 / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter ME-523 - Soar Corporation; Hanishinagun

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 95 x 45 x 155 mm / 3.7 x 1.8 x 6.1 inch

• Notes

• Soar Corporation, Digital multimeter ME-523

  LCD 3½ digit (Max. indication 1999 or -1999)

  See also Soar ME-523 C

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)
