Digital Multimeter ME-523 C
Soar Corporation; Hanishinagun
- Country
- Japan
- Manufacturer / Brand
- Soar Corporation; Hanishinagun
- Year
- 1979 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 328841

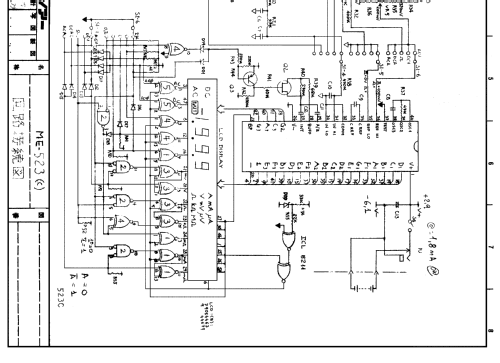

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors
- 2SA608 2SC1959 2SK44 CD4001 CD4077 CD4077 CD4077 CD4071 ICL7106 ICL8211 TL061 1S1588 unknown_Display
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter ME-523 C - Soar Corporation; Hanishinagun
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 95 x 45 x 155 mm / 3.7 x 1.8 x 6.1 inch
- Notes
-
Soar Corporation, Digital multimeter ME-523 C
LCD 3-1/2 digit (Max. indication 1999 or -1999)
The original manual, which looks like a mix of the ME523 and ME523C, shows in parts list a possibly wrong listed MC14001(CD4001) instead of a 1N4001 diode
See also Soar ME-523
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
