Digital Multimeter ME-524
Soar Corporation; Hanishinagun
- Country
- Japan
- Manufacturer / Brand
- Soar Corporation; Hanishinagun
- Year
- 1980 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 328242

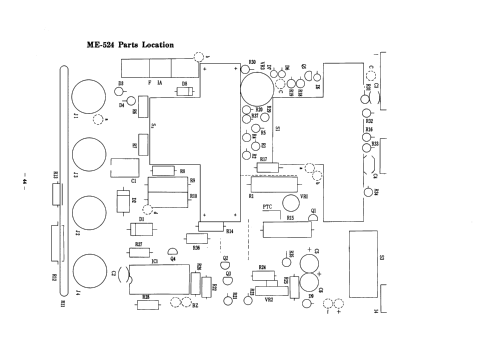

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter ME-524 - Soar Corporation; Hanishinagun
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Soar Corporation, Digital Multimeter ME-524
- DCV: 200mV to 600V in 6 steps
- ACV: 200V and 1000V
- DCA: 200μA to 10A in 6 steps
- Res: 200Ω to 2MΩ in 6 steps (buzzer for continuity in 200Ω range)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
