• Country
• Great Britain (UK)

• Manufacturer / Brand
• Sobell Ind., Slough

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169350

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EB91 EM84 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

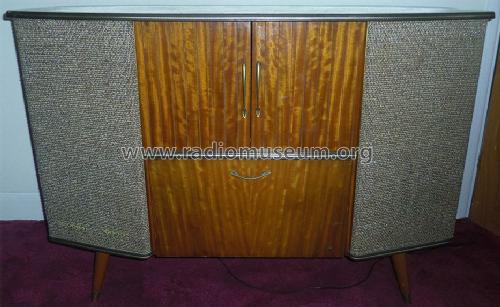

• Model: SG671 - Sobell Ind., Slough

• Shape
• Console with any shape - in general

• Notes
• Stereo radiogram (radio mono) fitted with BSR type UA14 changer, & TC8S pick-up cartridge. Similar to GEC model G971, & McMichael models MS204 & MS205. Price 69gns.

• Price in first year of sale
• 72.00 GBP

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS) (RER Sheet R201.)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 116 models, 67 with images and 90 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sobell Ind., Slough
