Sobellette 439 metallic green
Sobell Ind., Slough
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Sobell Ind., Slough
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79293

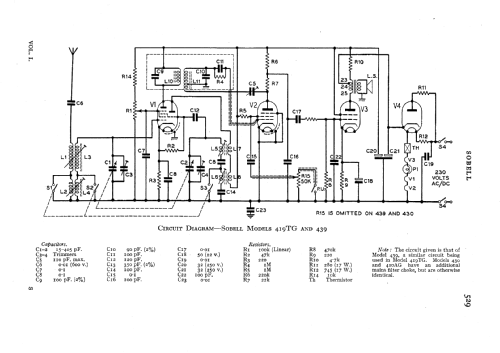

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superhet, IF regeneration; ZF/IF 465 kHz; 1 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Sobellette 439 [metallic green] - Sobell Ind., Slough
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9 x 8.5 x 7 inch / 229 x 216 x 178 mm
- Notes
- Single IF transformer with preset reaction coupling. Leaky grid detector. Screen grid manual volume control. Toaster style case. Available in brown bakelite or painted light green, metallic green, beige, or cream.
- Source of data
- Radio! Radio!
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Literature/Schematics (2)
- Trader sheet 939
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
