3D Duplex 1257

SOCORA; Bruxelles

  • Year
  • 1957
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 260909

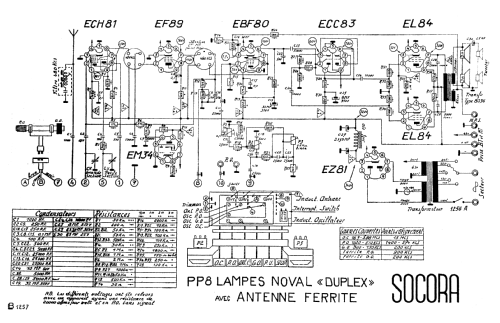

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 480 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 3D Duplex 1257 - SOCORA; Bruxelles
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Sold as kit



  • Price in first year of sale
  • 2,885.00 BEF
  • Mentioned in
  • Catalogue Radio Bourse 1957
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
