TS-600G

• Country
• Germany

• Manufacturer / Brand
• Sommerkamp

• Year
• 1967

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 152147

• • alternative name: Sommerkamp El. Schweiz

• Picture
• Schematics

Previous Next

Previous Next

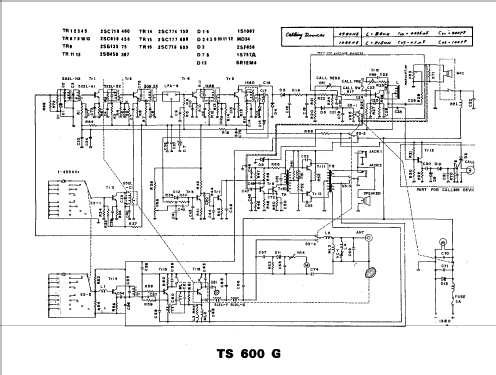

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12-14 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS-600G - Sommerkamp

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 150 x 47 x 165 mm / 5.9 x 1.9 x 6.5 inch

• Notes

• Sommerkamp Mobilfunkgerät TS-600G.
  Amateurmodell: 8 Kanäle im 10-m-Band, P_out: 5···7 W zu 640,- DM.
  Industriemodell (mit FTZ-Nummer): 6 Kanäle im 11-m-Band; P_out: 1,5 W zu 750,- DM.

  FTZ Nr. K-51/67

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Literature/Schematics (1)
• Bauer-Katalog, Bamberg, 1968

• Author
• Model page created by a member from D. See "Data change" for further contributors.
