• Country
• Germany

• Manufacturer / Brand
• Sommerkamp

• Year
• 1978 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 123036

• • alternative name: Sommerkamp El. Schweiz

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

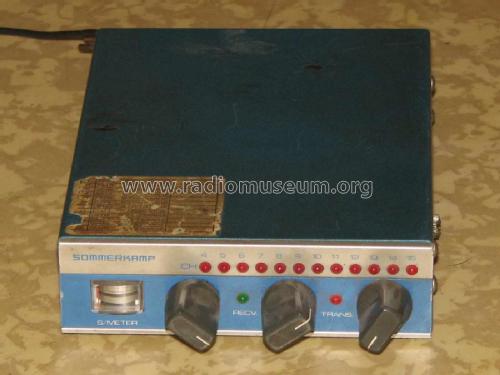

• Model: CB-Mobilfunkgerät TS-1205 - Sommerkamp

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• CB-Sprechfunk-Mobilgerät. 12 Kanäle im Bereich 27,005-27,135 MHz. AM. Frequenzaufbereitung durch PLL, HF-Output: 4 Watt. Anzeigeinstrument und LEDs.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
