• Country
• Germany

• Manufacturer / Brand
• Sommerkamp

• Year
• 1977 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 336793

• • alternative name: Sommerkamp El. Schweiz

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12BY7A 6JS6C 6JS6C

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 100 - 234 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: SSB Transceiver FT-277E [CBM] - Sommerkamp

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 153 x 285 mm / 13.4 x 6 x 11.2 inch

• Notes

• The Sommerkamp FT-277E version CBM is factory equipped with two crystal frequencies, one in the CB range (27.155 MHz) and the other in the marine band (2.182 MHz = international fone calling and distress frequency). It is equipped with a 2.4 kHz filter for SSB and a 6 kHz filter for AM operation. It has the RF speech processor built in ex factory.

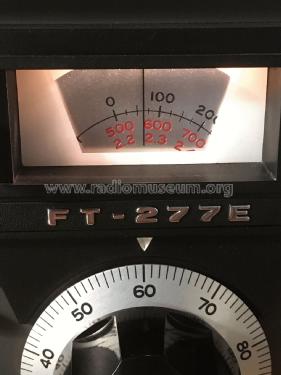

  Frequency ranges 2200 - 2700 kHz marine band, 80 - 10 meter HAM bands plus 27000 - 27500 kHz CB range and reception of time stations in the 10 MHz range. No 160 meter HAM band. For the marine band - unlike all other versions - the frequency display has a third range drawn on it. This is the rarest version of this model series.

  Crystal frequency for marine band in the first IF oscillator is 8,22 MHz intead of 7,52 MHz for ordinary 160 meters HAM band. The marine band is on the 160 meter position of the frequency control switch.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 3,400.00 DM

• Mentioned in
• Da: “Radio Rivista” organo ufficiale dell’ARI Italia, numero 1, gennaio 1977.

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
