Receiver FR-101 DIG/DL

Sommerkamp

Data
Forum
Pictures
Collections

  • Year
  • 1974–1978
  • Category
  • Amateur-Receiver (amateur bands, may include broadcast bands)
  • Radiomuseum.org ID
  • 327019
    • alternative name: Sommerkamp El. Schweiz

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 3180 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 100; 110; 117; 200; 220 / DC 13.5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

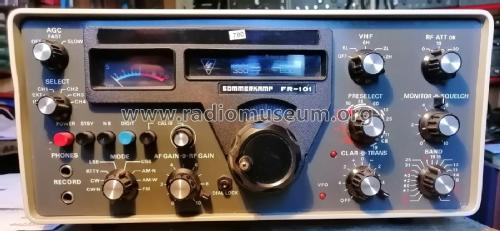

  • Model: Receiver FR-101 DIG/DL - Sommerkamp
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 340 x 150 x 290 mm / 13.4 x 5.9 x 11.4 inch
  • Notes

  • 1,8 MHz bis 30 MHz in 21 Bereichen von je 500 kHz
    Optional: Converter für 6 m und 2 m sowie FM-Demodulator

    Betriebsarten: SSB, CW, AM, RTTY

    Siehe auch Yaesu FR-101, passend zum Sommerkamp-Sender FL-101.

    This device was built in two versions which have only one small difference:
    FR101-DIG with digital display in addition to the index (analog) instrument.
    FR101-DL with only index (analog) instrument.
    All other characteristics are the same.

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 4, April 1977.)
  • Author
  • Model page created by Ottmar Rollmann. See "Data change" for further contributors.
