• Country
• Switzerland

• Manufacturer / Brand
• Sondyna AG; Zürich-Effretikon

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13599

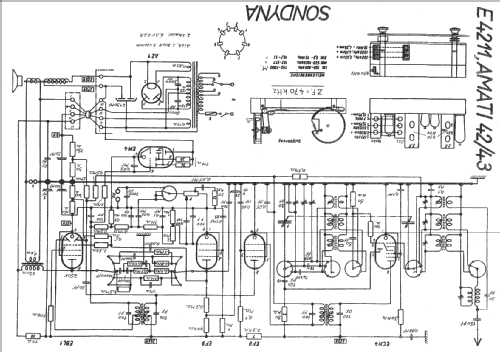

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EF9 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Amati 43 E4211- 42-43 - Sondyna AG; Zürich-Effretikon

• Price in first year of sale
• 485.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

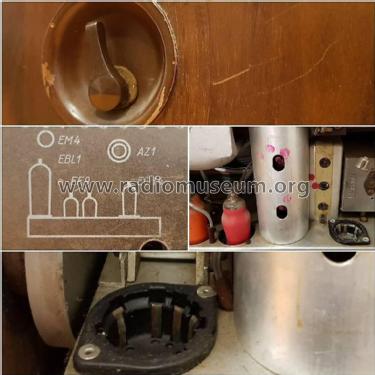

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
