• Country
• Switzerland

• Manufacturer / Brand
• Sondyna AG; Zürich-Effretikon

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13640

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 125, 145, 220 Volt

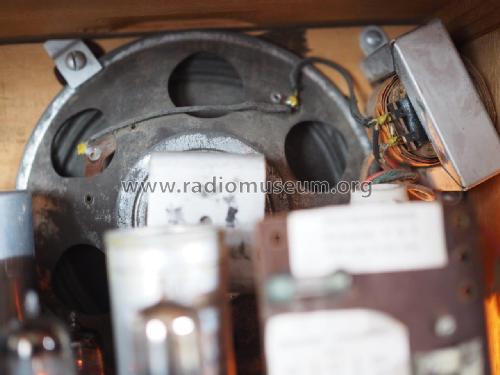

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

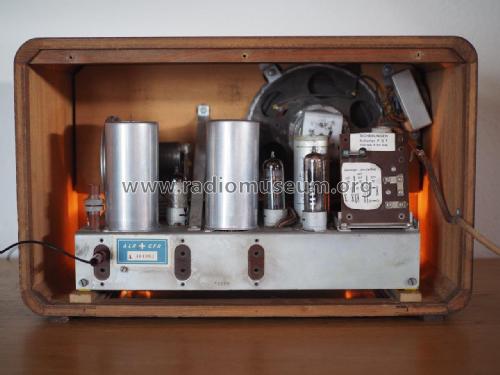

• Model: E5010 - Sondyna AG; Zürich-Effretikon

• Shape
• Tablemodel, with any shape - general.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
