• Country
• Switzerland

• Manufacturer / Brand
• Sondyna AG; Zürich-Effretikon

• Year
• 1962–1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25421

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF80 EF80 EAM86 EF80 EBF89 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

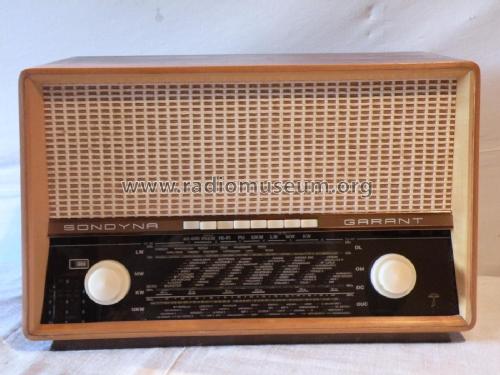

• Model: Garant E6200 - Sondyna AG; Zürich-Effretikon

• Dimensions (WHD)
• 462 x 295 x 235 mm / 18.2 x 11.6 x 9.3 inch

• Notes
• Zus.mit Velectra (Biennophone) entstanden. V. verkauft unter «Celerina». U.Gloor: getrennte ZF für AM+FM, eingeb.UKW-Ferrit-Ant., Klang gut, Design neutral, Tasten ob Skala, 2farbig hellbraun/natur, Knöpfe Elfenbein ohne Verzierung,

• Source of data
• Radiokatalog Band 2, Ernst Erb
