• Country
• Switzerland

• Manufacturer / Brand
• Sondyna AG; Zürich-Effretikon

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13579

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EBF2 ECL11 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Bakelite case

• from Radiomuseum.org

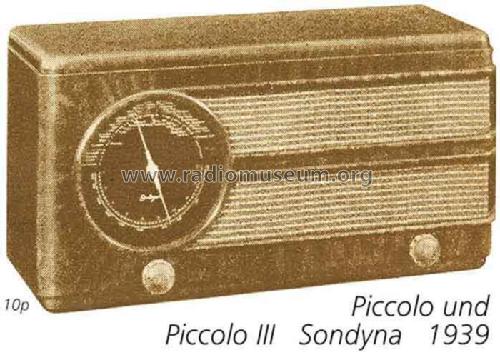

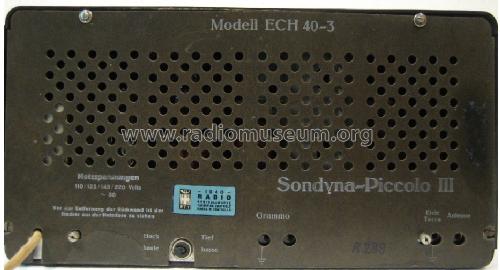

• Model: Piccolo III ECH40-3 - Sondyna AG; Zürich-Effretikon

• Dimensions (WHD)
• 400 x 210 x 140 mm / 15.7 x 8.3 x 5.5 inch

• Price in first year of sale
• 260.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 177 models, 112 with images and 115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sondyna AG; Zürich-Effretikon
