Stradivari (var1) E4831

Sondyna AG; Zürich-Effretikon

  • Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13631

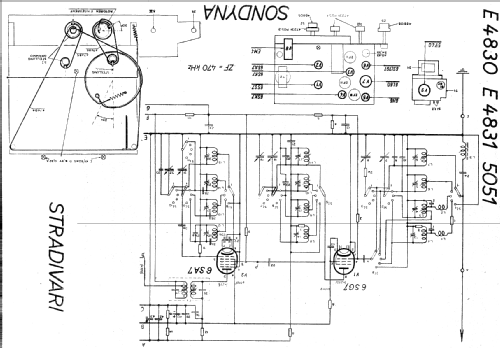

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-255 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stradivari E4831 - Sondyna AG; Zürich-Effretikon
  • Shape
  • Console with any shape - in general
  • Notes
  • M-Truhe;Ch=E4830; auch KW-Lupe ; Plattenwechsler= Thorens Concert CD 41
  • Price in first year of sale
  • 1,950.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
