• Country
• Canada

• Manufacturer / Brand
• Sonic Frontiers; Oakville

• Year
• 1992 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 290327

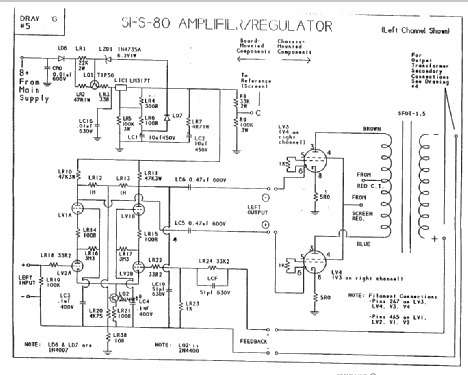

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6DJ8 6DJ8 6DJ8 6DJ8 6550A 6550A 6550A 6550A

• Main principle
• Audio-Amplification; Hi-Fi-High End products

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 100-120 or 200-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (80 W max.)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: SFS-80 - Sonic Frontiers; Oakville

• Dimensions (WHD)
• 18 x 14.5 x 9 inch / 457 x 368 x 229 mm

• Notes

• HiFi Stereo Amplifier

  80W RMS from 20Hz to 20kHz

  0.95V RMS at 1 kHz for 80W

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Ring Audio Syperek Ted. See "Data change" for further contributors.
