• Country
• Belgium

• Manufacturer / Brand
• Soniclair; Bruxelles

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159158

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6B7 6C6 42 6E5 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

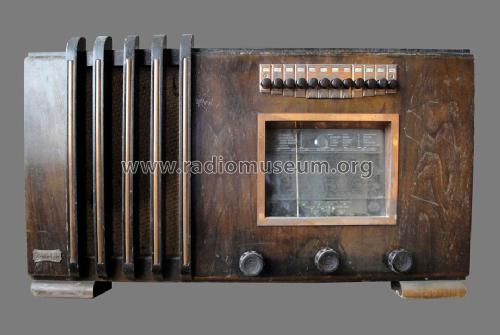

• Model: Automatique 87A - Soniclair; Bruxelles

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 355 x 310 mm / 25.2 x 14 x 12.2 inch

• Notes

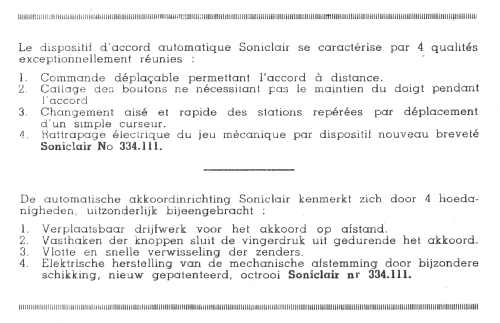

• Soniclair model Automatique 87A is the same as model 82A, however equipped with an electric motor and 12 push buttons.

• Price in first year of sale
• 2,790.00 BFr

• Source of data
• Manuel de la Radio 1940, van Cortenberghe

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 46 models, 35 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
